JMG

GENERAL INFORMATIONS

The “JMG” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 2,675kW (2,300,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h).
Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V cell.
- For natural gas or LPG, other gaseous fuel on request.
- Max.-min. ratio 15:1.
- Available as complete version with gas ramp, according to EN 676 on right or left hand.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of kilns, suitable for oxidative,stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
   Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.

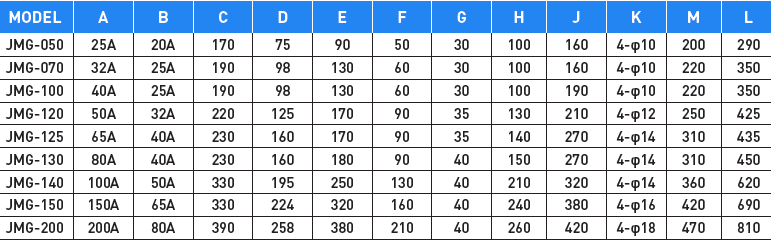

DIMENSIONS

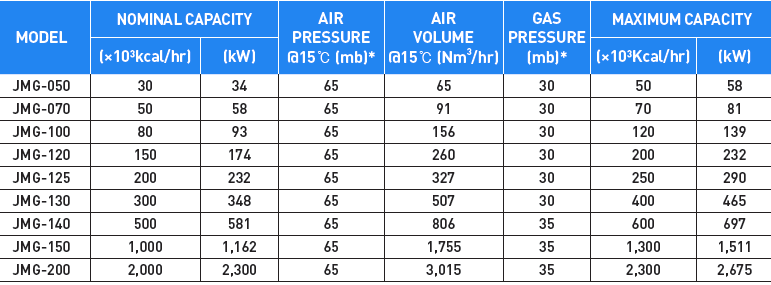

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.
Gas pressures are refer to Natural gas.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JMGT

GENERAL INFORMATIONS

The “JMGT” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 2,675kW (2,300,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h).
Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V. cell.
- For natural gas or LPG, other gaseous fuel on request.
- Max.-min. ratio 15:1.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
   Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.
- Glass : Hardening ovens
- Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
- Food : Cereal Dryers, Roasters.
- Drying Tobacco.

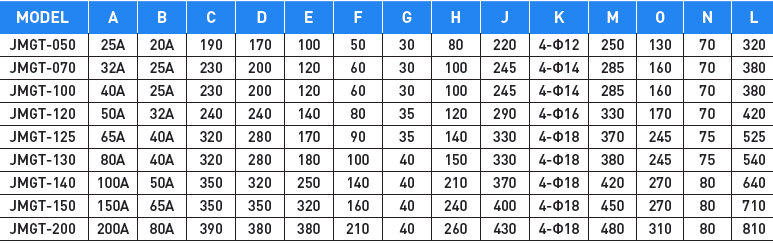

DIMENSIONS

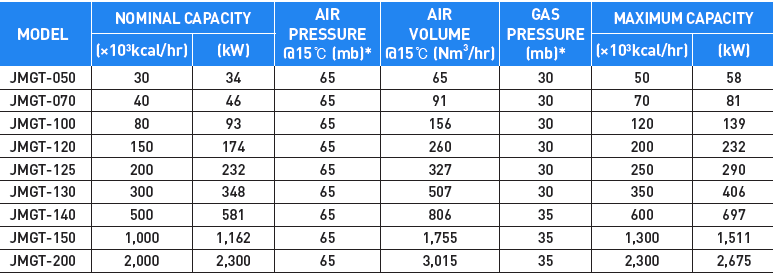

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JHG

GENERAL INFORMATIONS

The “JHG” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature.
The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 15:1. The maximum thermal potentiality is 2,675kW (2,300,000kcal/h) while the minimum potentiality can come up to 5.8kW(5,000kcal/h).
Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V. cell.
- For natural gas or LPG, other gaseous fuel on request.
- Max.-min. ratio 15:1.
- Available as complete version with gas ramp, according to EN 676 on right or left hand.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
   Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.
- Glass : Hardening ovens
- Printing and Packing : Air Heaters for Rotogravures,Flexographic and Coupling and adhesive coating Machines.
- Food : Cereal Dryers, Roasters.
- Drying Tobacco.

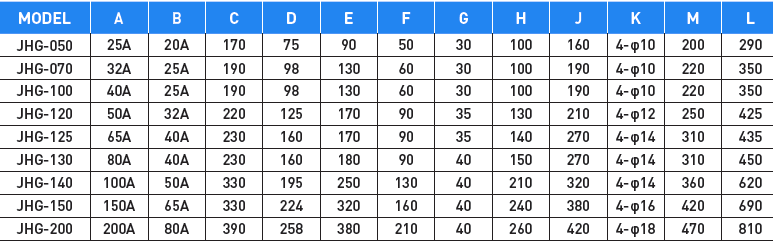

DIMENSIONS

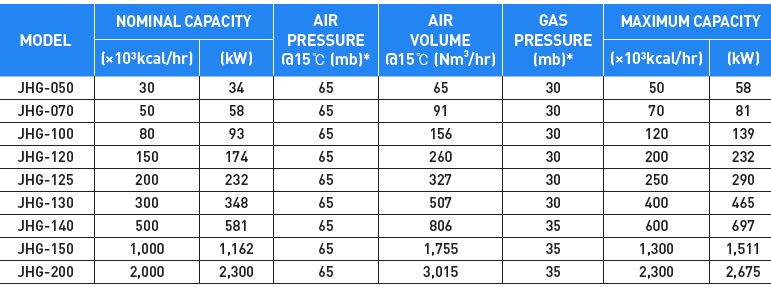

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JHGT

GENERAL INFORMATIONS

The "JHGT" gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power(on request). It was designed for the installation in all the process in which it is necesssary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The maximum thermal potentiality is 2,675kW (2,300,000kcal/h) while the minimum potentiality can come up to 5.8kW (5,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 300℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process. Burner structure is painting casting, the body is of iron, the bottom of aluminum, the parts in contact with flame of refractory steel and Nickel Chrome alloys.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V cell.
- For natural gas or LPG, other gaseous fuel on request.
- Max.-min. ratio 15:1.
- Available as complete version with gas ramp, according to EN 676 on right or left hand.
- Easy to install, to start, to operate.

APPLICATIONS

- All Types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
   Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.
- Glass : Hardening ovens.
- Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
- Food : Cereal Dryers, Roasters.
- Drying Tobacco.

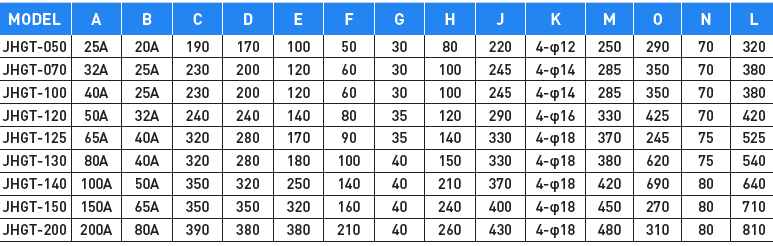

DIMENSIONS

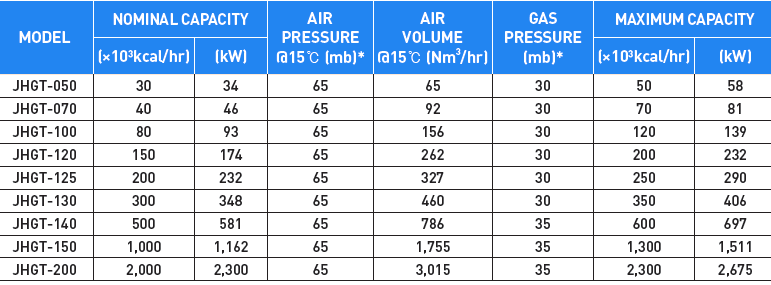

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.
Gas pressures are refer to Natural gas.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JHMG

GENERAL INFORMATIONS

The “JHMG” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). Burner operation may be automatic or semi-automatic, and burner is equipped with electric ignition and detection electrode.
This burner is classified as a “high/medium speed gas burner”, with exhaust gases speed coming out from the combustion chamber rancing from few m/s to 100 m/s, or even higher speed according to the outlet diameter of the burner cone. Combustion air temperature required for this burner can change from room temperature until 300℃. The Maximum thermal potentiality is 17,441kW (1,500,000kcal/h) while the minimum potentiality can come up to 116kW (10,000kcal/h). Because of its flexibility, this burner may be adjusted with a wide capacity range up to a 10:1 ratio.

FEATURES

- Direct spark ignition, ionization flame detection electrode.
- Multifuel combustion head for Natural gas or LPG.
- Turn down ratio 10 to 1.
- Available as packaged execution, with gas ramp, according to EN 676 (or other required) on right or left hand.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
- Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
- Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.
- Glass : Hardening ovens.
- Printing and Packing : Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
- Food : Cereal Dryers, Roasters.
- Drying Tobacco.

DIMENSIONS

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only. Gas pressures are refer to Methane gas.
* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.
The descriptions and specifications are subject to change without notice.

JGB

GENERAL INFORMATIONS

The “JGB” gas burner series is a blown-air burner which can operate with natural gas, LPG, lean gas and gas with low calorific power (on request). It was designed for the installation in all the process in which it is necessary to obtain a deeply oxidizing combustion to limit working temperature. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 10:1. The maximum thermal potentiality is 15,930kW (13,700,000kcal/h) while the minimum potentiality can come up to 5.8kW(1,200kcal/h). Combustion air temperature required for this burner can change from room temperature to 450℃. A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by EN 676 regulations.
Burner tile is made from refractory – high alumina castable, it could be used up to 1,650℃.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V cell.
- For natural gas or LPG, other gaseous fuel on request.
- Max.-min. ratio 10:1.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of kilns, suitable for oxidative, stoichiometric or reducing combustion.
- Ceramic, Bricks, Refractory:
   Roller kilns, Tunnel kilns, Intermittent kilns, Melting kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic Industry.
- Surfaces Treatment.
- Glass : Hardening ovens.
- Hot Gas Generator.
- Incinerator.
- Industrial waste treatment.

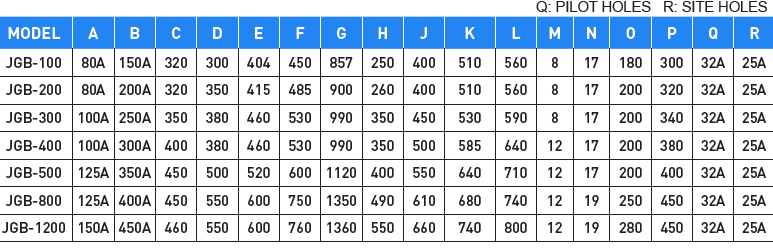

DIMENSIONS

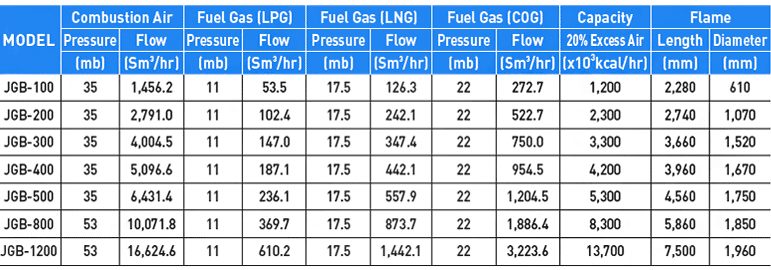

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only. Gas pressures are refer to Natural gas.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JRT

GENERAL INFORMATIONS

The “JRT” burner series of gas burner has been designed and realised for installation on indirect exchange distribution pipes into kilns and dryers. The completely automatic working allows on-off regulations, high/low flame, air/gas modulating. The last allows to obtain max.-min. regulation ratio until 5:1.
The maximum thermal potentiality is 175kW (150,000kcal/h) while the minimum potentiality can come up to 7 kW (6,000kcal/h). Combustion air temperature required for this burner can change from room temperature until 350℃.
A particular care has been dedicated to CO and NOx emissions produced by combustion process, these elements are lower than limits required by regulations. Burner structure is painting casting, the parts in contact with flame of refractory steel and Nickel Chrome alloys. The burner has ignition and flame revelation electrodes, pressure switch to measure air and gas instantaneous flows, flame indicating light. For a correct installation it’s necessary inform our Technical Department about the temperature and the power of the burner utilization. These information are important to dimension section across the combustion head to obtain an optimal yield burner.

FEATURES

- Direct spark ignition, ionization flame detection electrode or U.V. cell.
- For Natural Gas or LPG, other gaseous fuel on request.
- turn down ratio 5 to 1.
- Easy to install, to start, to operate.

APPLICATIONS

- All types of application in which a large exchange surface between combustion gas and process air is required,
   in all processes in which it needs that combustion. products come into contact with material to be treated.
- Ceramic, Bricks, Refractory:
   Intermittent and Roller kilns.
   Continuous and Intermittent Dryers.
- Iron metallurgic : Kilns for thermal treatments.
- Surfaces treatment : Painting and Enamelling Kilns.
- Glass : Hardening ovens.
- Printing and Packing: Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
- Food: Cereal, fodder and tobacco dryers, roasters.
- Drying Tobacco.

DIMENSIONS

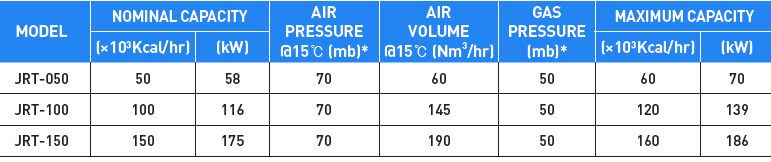

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.
Gas pressures are refer to Natural gas.

* Stoichiometric conditions.
  Performance data and dimensions are guidelines only.

The descriptions and specifications are subject to change without notice.

JSB

GENERAL INFORMATIONS

It is easy to install for this equipment this can be applied to more various purpose and has a merit of energy saving.
You can easily replace the burner and burner tube.

FUEL

- Natural Gas
- LPG
- Other gaseous fuel

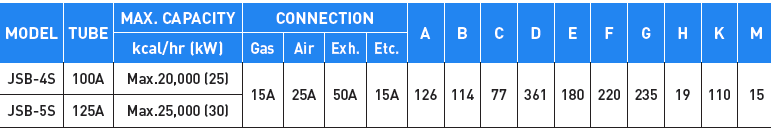

SPECIFICATIONS

Standard Supply Pressure : Gas 500~700mbar, Air 700~800mbar
Ignition Method : Direct Ignition by ignition Plug

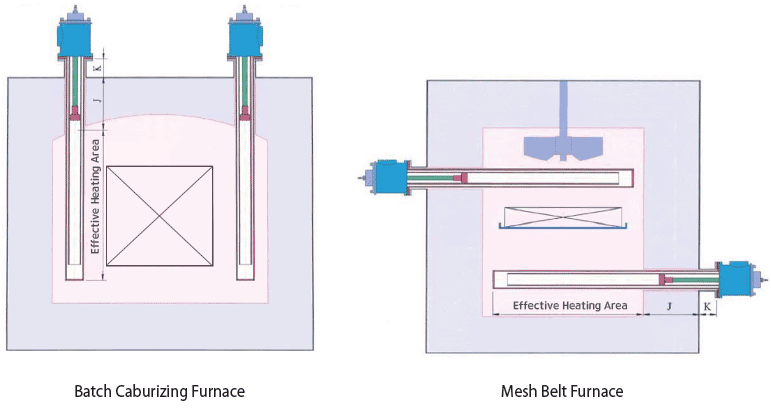

INSTALLATION EXAMPLES

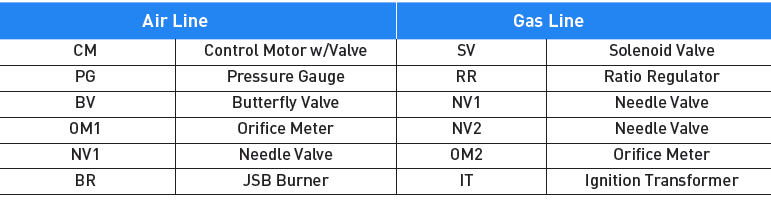

FLOW DIAGRAM

JDC

GENERAL INFORMATIONS

The “JDC” gas burner represents a new concept of direct heating air for industrial process optimizing mixing velocity of warm gases produced by combustion, with process air. They are properly classified as “head mixing burner”.
For their suitable working, they need low pressure of air and gas.
“Linear” and “cross” models are available; these models, correctly assembled, may represent a never ending variety of adaptable conformation to every conduct shape (size) and every application required.
The basis unit include housing burner with ignition probe, pilot burner and integrated ionization electrode, or UV detection cell. Combustion air may be supplied directly from the process or from a blower (depending of installation type).
In case that air of combustion is supplied by the process, the burner is called “OPEN-BACK”. Process air must have a minimum oxygen tenor of 17% with a flow speed of 20m/s; the pressure drop in this application if 2.5 mbar. If combustion air is supplied by a blower, burner module will be equipped with a connection flange; in this case low oxygen tenor won’t prevent burner to have a good combustion.

FEATURES

- Main module direct electrical ignition thanks to electrode or indirect thanks to a pilot incorporated in burner structure.
- Flame detection with ionization electrode or U.V. cell.
- Standard executions for Methane gas and LPG, other gaseous fuel on request.

APPLICATIONS

- All types of application in which a large exchange surface between combustion gas and process air is required,
   and it’s necessary a fast and uniform mixing.
- Ceramic, Bricks, Refractory: Intermittent and continuous dryers.
- Surfaces treatment: Painting kilns, enameling kilns and dryers.
- Printing and Packing: Air Heaters for Rotogravures, Flexographic and Coupling and adhesive coating Machines.
- Food: Cereal, fodder and tobacco dryers, roasters.

DIMENSIONS

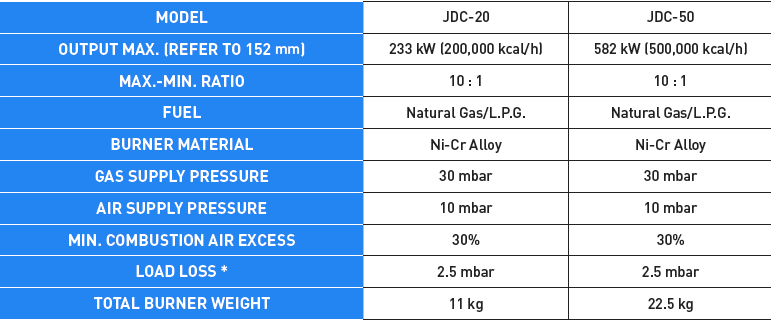

TECHNICAL DATA

The above mentioned performance data are described at their maximum power.
Pressure showed are guidelines only.
Gas pressures are refer to Natural gas.

* The load loss onto burner depend to the process air speed. The load loss indicated are refered to a speed of 10m/s.

Performance data and dimensions are guidelines only.

The descriptions and specifications are subeject to change without notice.
